ACO Fiberglass Black

ACO Fiberglass SQ is an exposed ceiling system with square lay-in edge, it is the most widely used acoustic ceiling system among all type of fiberglass ceiling tiles. The system is easy to install, has simple effects and is the most economical.

Sound absorption NRC≥85
Connect T15/24 grid\
Square lay-in edge
Easy to assemble and maintain

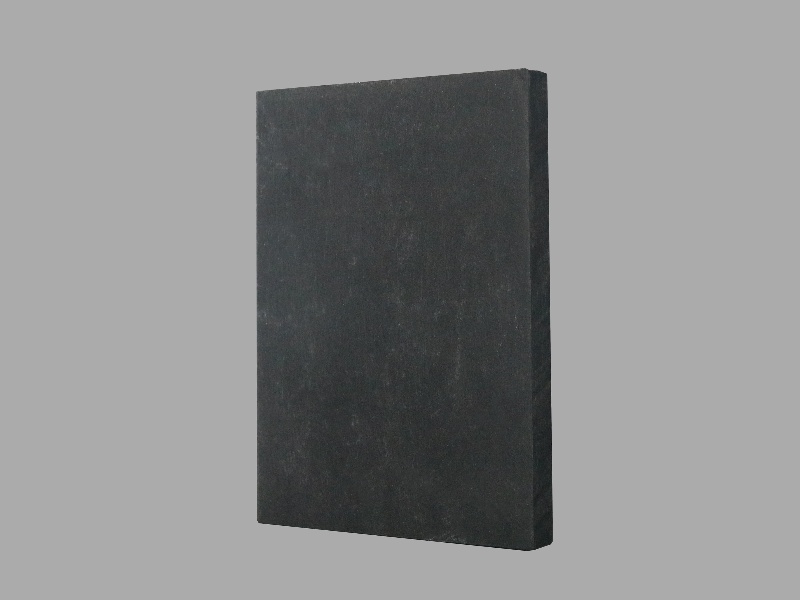

fiberglass rock wool black acoustic ceiling tiles system

fiberglass rock wool black acoustic ceiling tiles

Main materials
Dry synthetic high-strength glass wool

Surface materials
Decorative fiberglass veil with different designs and colors

Sound absorption
NRC≥0.85 according to EN ISO 354:2003 and EN ISO 11654:1997

Dampproof performance
Class C according to EN 13964:2014, stable performance when temperature is 40℃ and the relative humidity is below 95%

Fireproof performance
Class A, A2-s1 according to EN 13501-1, non-combustible materials

Density
100-140 kgs/m³, can accept customization upon request

Environmentally friendly
Both the product and packaging are recyclable

Technical Properties

Edge	Dimensions(mm)	Shape	Sound Absorption(NRC)	Fireproof	Dampproof	Reflectivity
	600×600×15/20		≥0.85	Class A	Class C	0.85
	600×1200×15/20		≥0.85	Class A	Class C	0.85
	600×1800×20/25		≥0.85	Class A	Class C	0.85
	600×2400×25/30		≥0.85	Class A	Class C	0.85
	300×600×15/20		≥0.85	Class A	Class C	0.85
	300×1200×15/20		≥0.85	Class A	Class C	0.85
	1200×2400×25/30		≥0.85	Class A	Class C	0.85

Surface Veil

The surface of the acoustic ceiling tile is coated with a layer of fiberglass veil. This non-woven fabric is created from glass fiber filaments woven into a mesh structure and bound with resin. It provides excellent thermal insulation, high temperature resistance, superior sound absorption, and strong resistance to both acid and alkaline corrosion. Fiberglass surface veil comes primarily in white, we can also customize colors.

220

500

600

700

800

RAL Color

T-Grid

The T-grid system enables modular installation of ceiling tiles, enhancing system stability and speeding up the installation process. A complete T-grid system consists of Main Tee, Cross Tee, Small Tee, and Wall Angle components. We also offer various design options, including plain, groove, and exposed types.
