ACO Rock SLN

ACO Rock SLN is an exposed rock wool ceiling system with square tegular narrow edge design. The tegular design of the ceiling edge allows the T-bar to be embedded inside, creating a sense of shadow.

Sound absorption NRC≥85
Connect T15/24 grid
Square tegular narrow edge
Excellent visual design

fiberglass rock wool sln acoustic ceiling tiles system 1

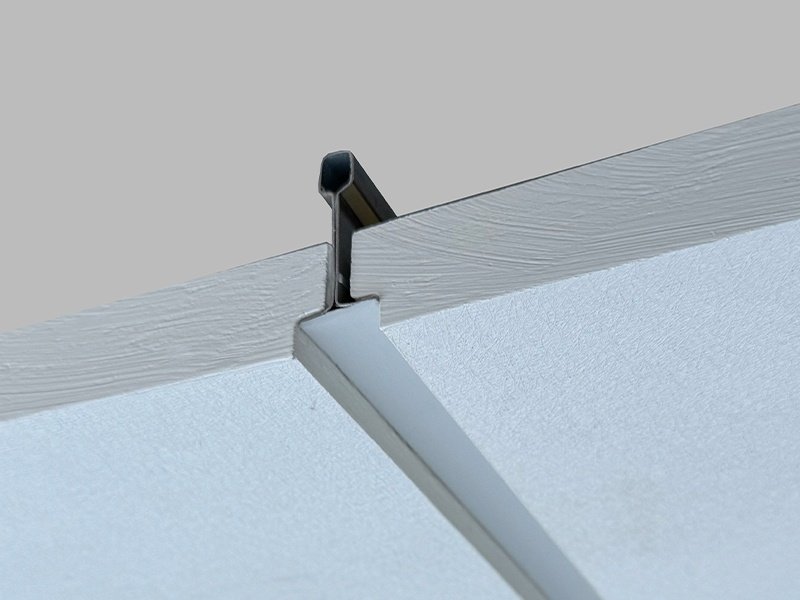

fiberglass rock wool sln acoustic ceiling tiles system 2

Main materials

Dry synthetic high-strength rock wool

Surface materials

Decorative fiberglass veil with different designs and colors

Sound absorption

NRC≥0.85 according to EN ISO 354:2003 and EN ISO 11654:1997

Dampproof performance

Class C according to EN 13964:2014, stable performance when temperature is 40℃ and the relative humidity is below 95%

Fireproof performance

Class A, A2-s1 according to EN 13501-1, non-combustible materials

Density

160-200 kgs/m³, can accept customization upon request

Environmentally friendly

Both the product and packaging are recyclable

Technical Properties

Edge	Dimensions(mm)	Shape	Sound Absorption(NRC)	Fireproof	Dampproof	Reflectivity
	600×600×15/20		≥0.85	Class A	Class C	0.85
	600×1200×15/20		≥0.85	Class A	Class C	0.85
	600×1800×20/25		≥0.85	Class A	Class C	0.85
	600×2400×25/30		≥0.85	Class A	Class C	0.85
	300×600×15/20		≥0.85	Class A	Class C	0.85
	300×1200×15/20		≥0.85	Class A	Class C	0.85

Surface Veil

The surface of the acoustic ceiling tile is coated with a layer of fiberglass veil. This non-woven fabric is created from glass fiber filaments woven into a mesh structure and bound with resin. It provides excellent thermal insulation, high temperature resistance, superior sound absorption, and strong resistance to both acid and alkaline corrosion. Fiberglass surface veil comes primarily in white, we can also customize colors.

220

500

600

700

800

RAL Color

T-Grid

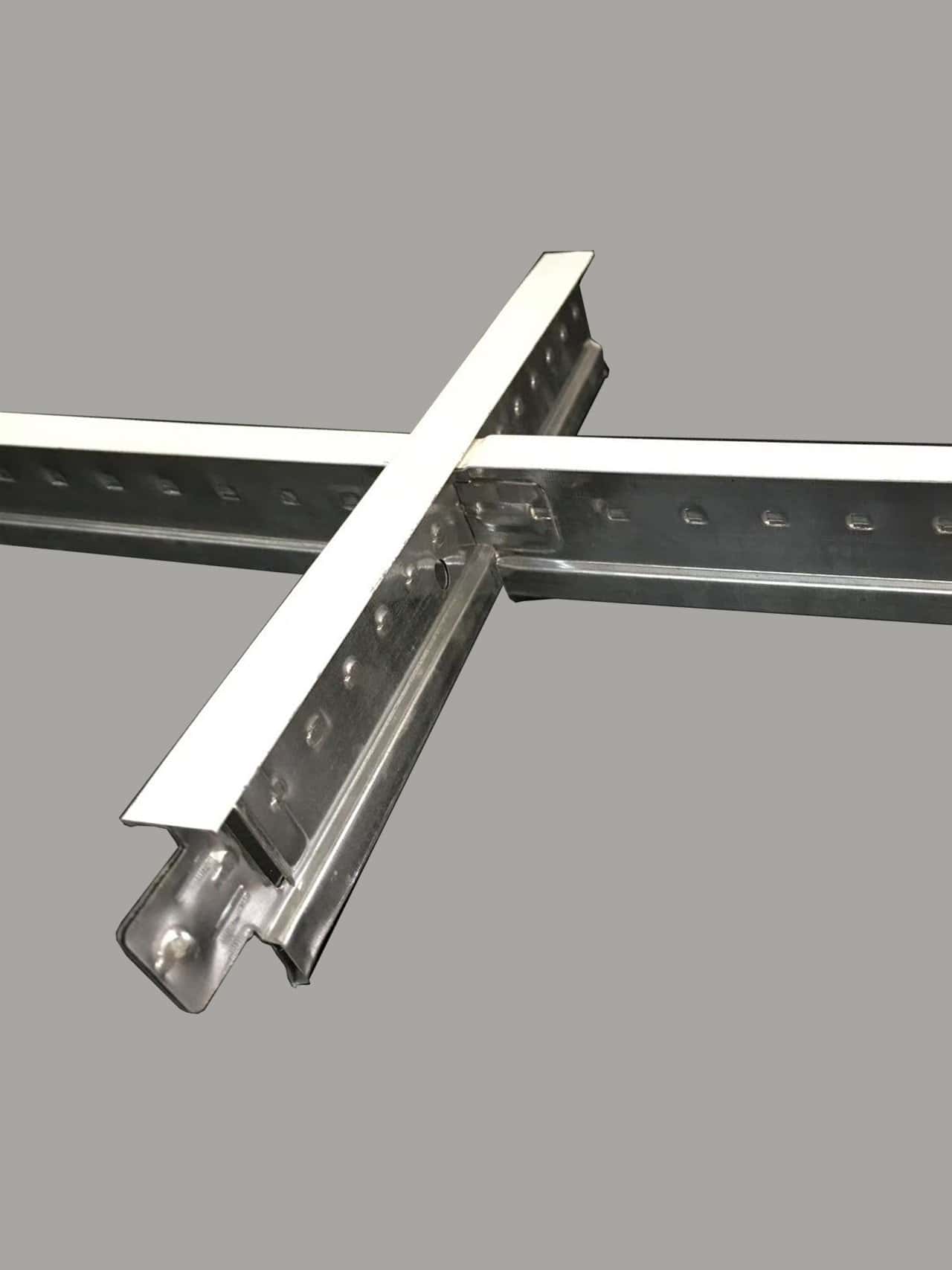

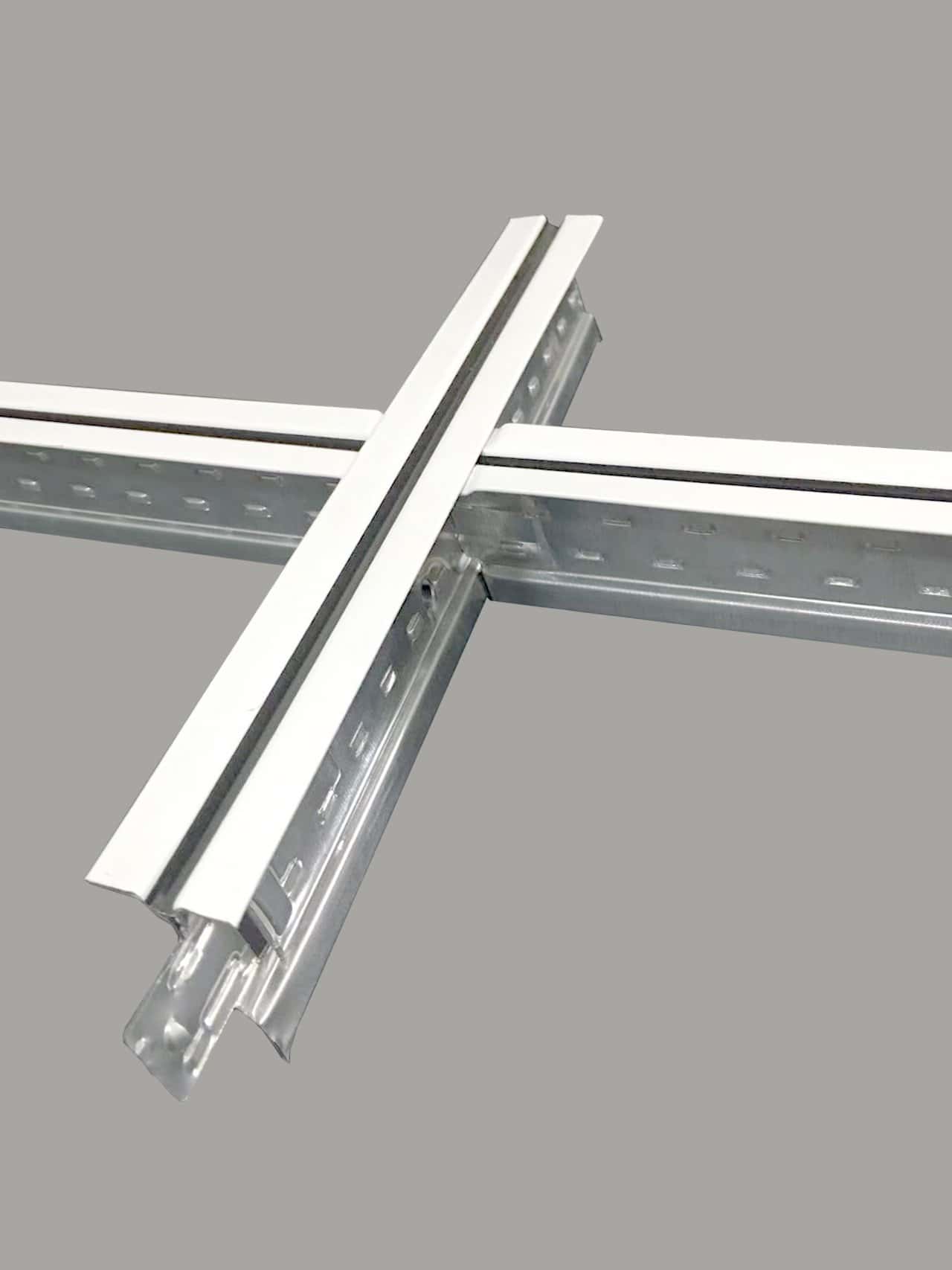

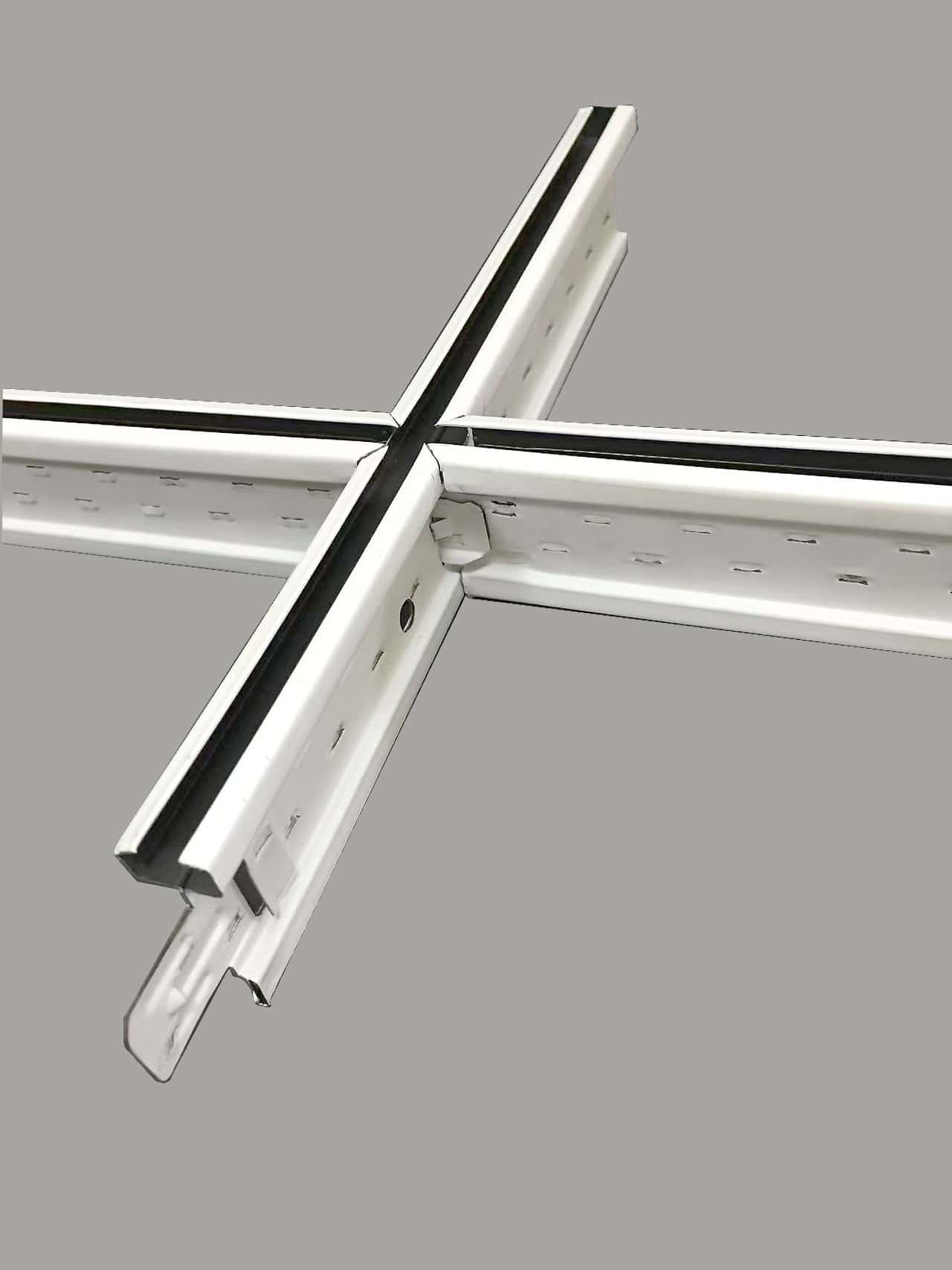

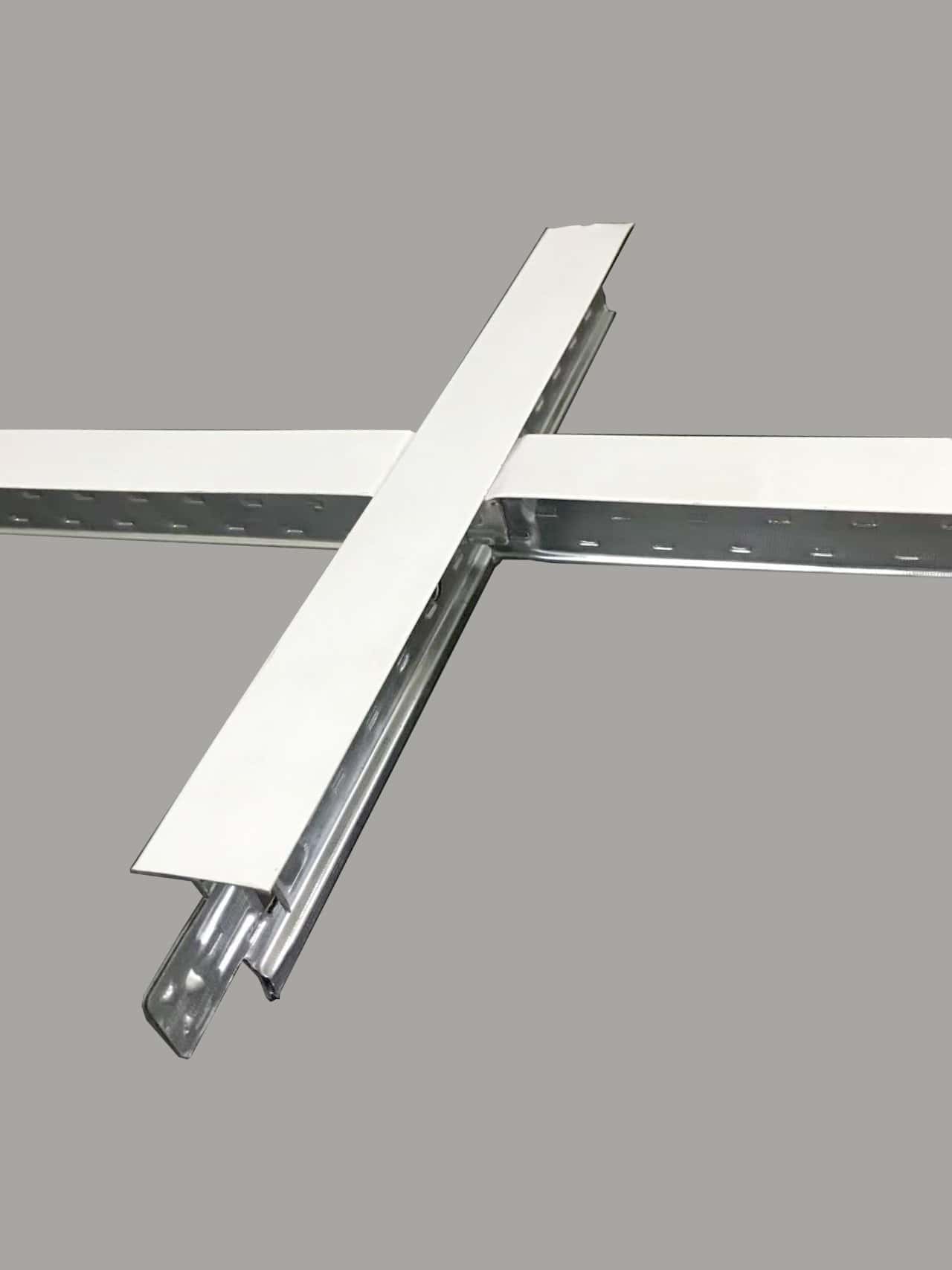

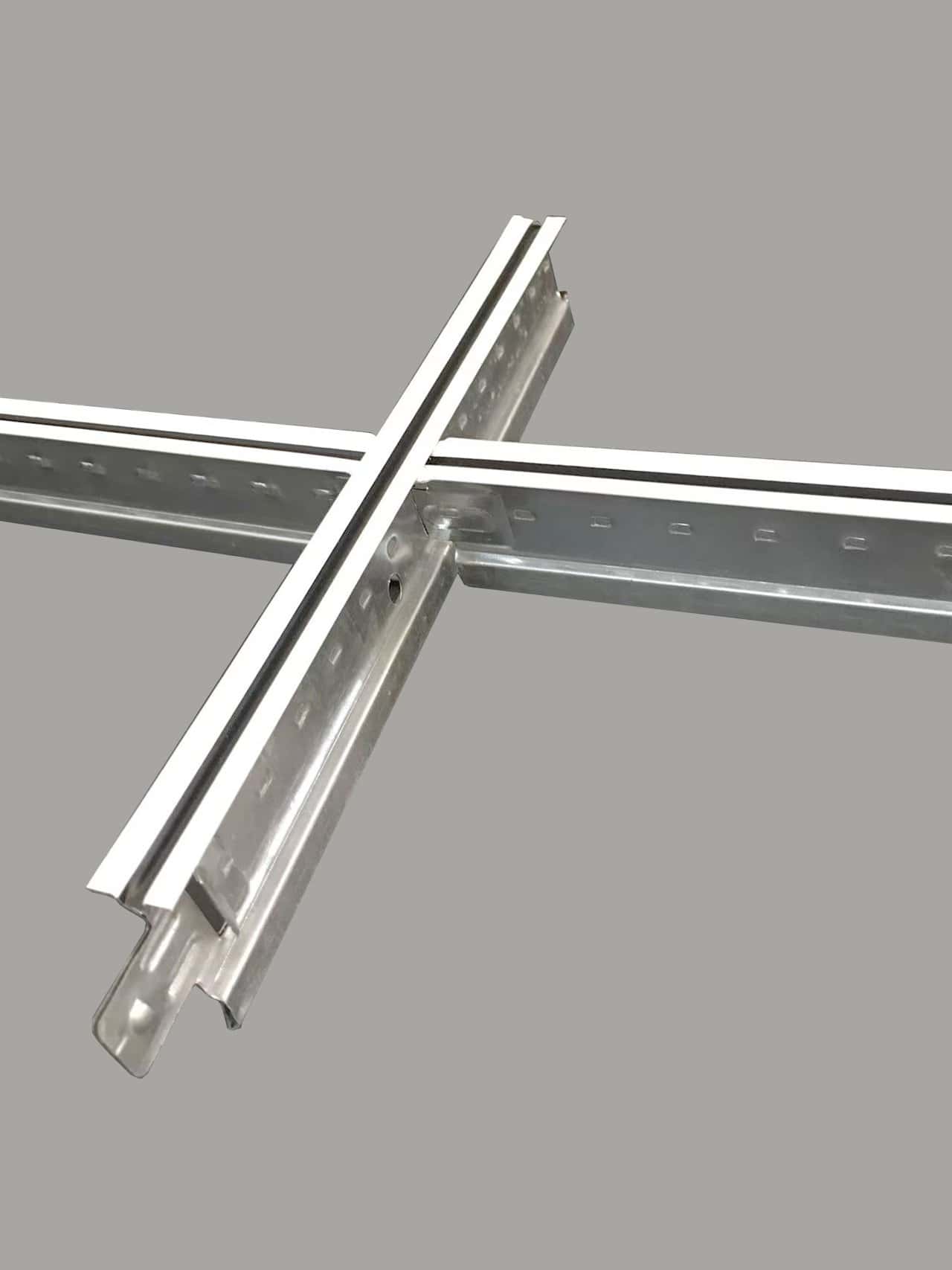

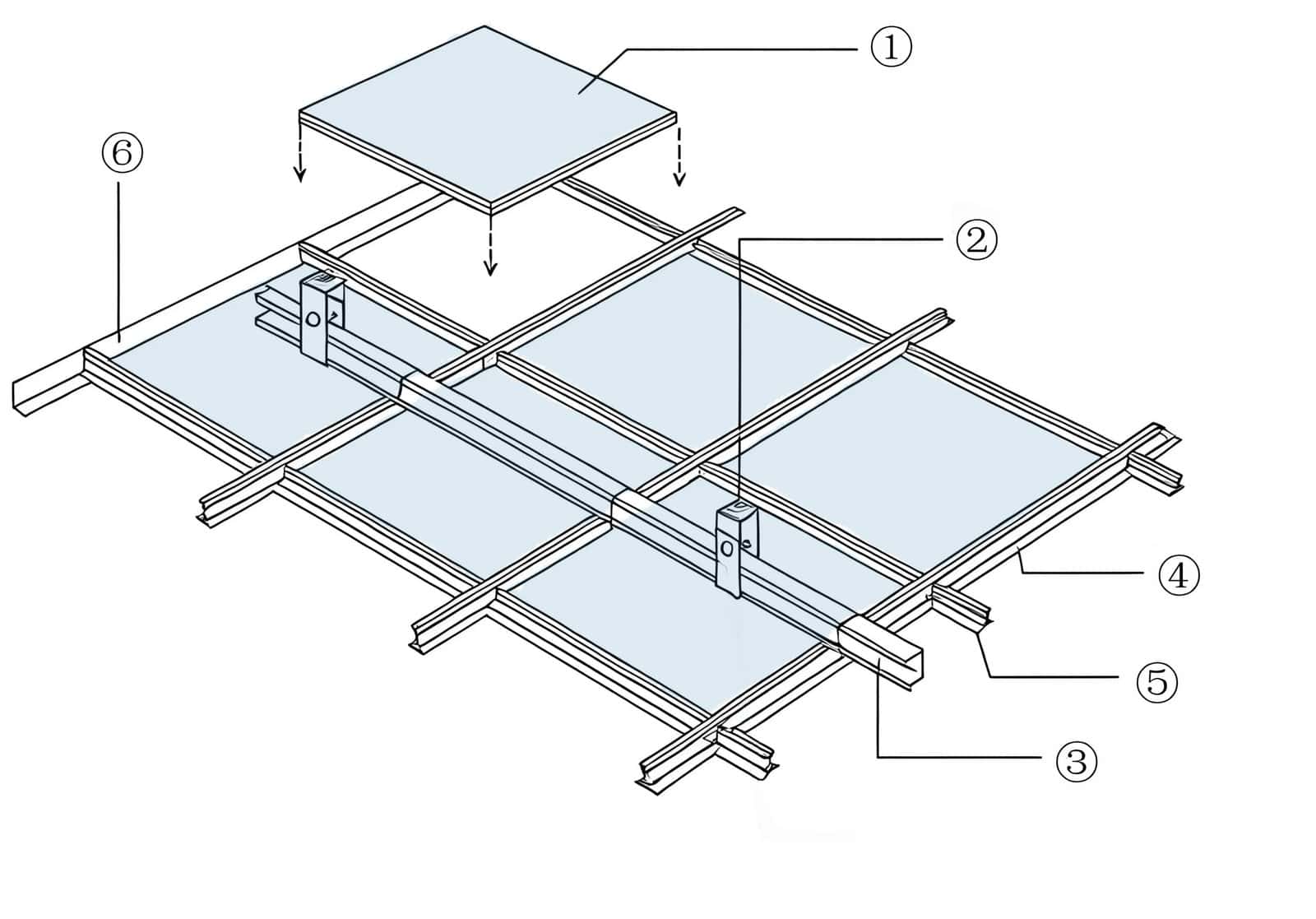

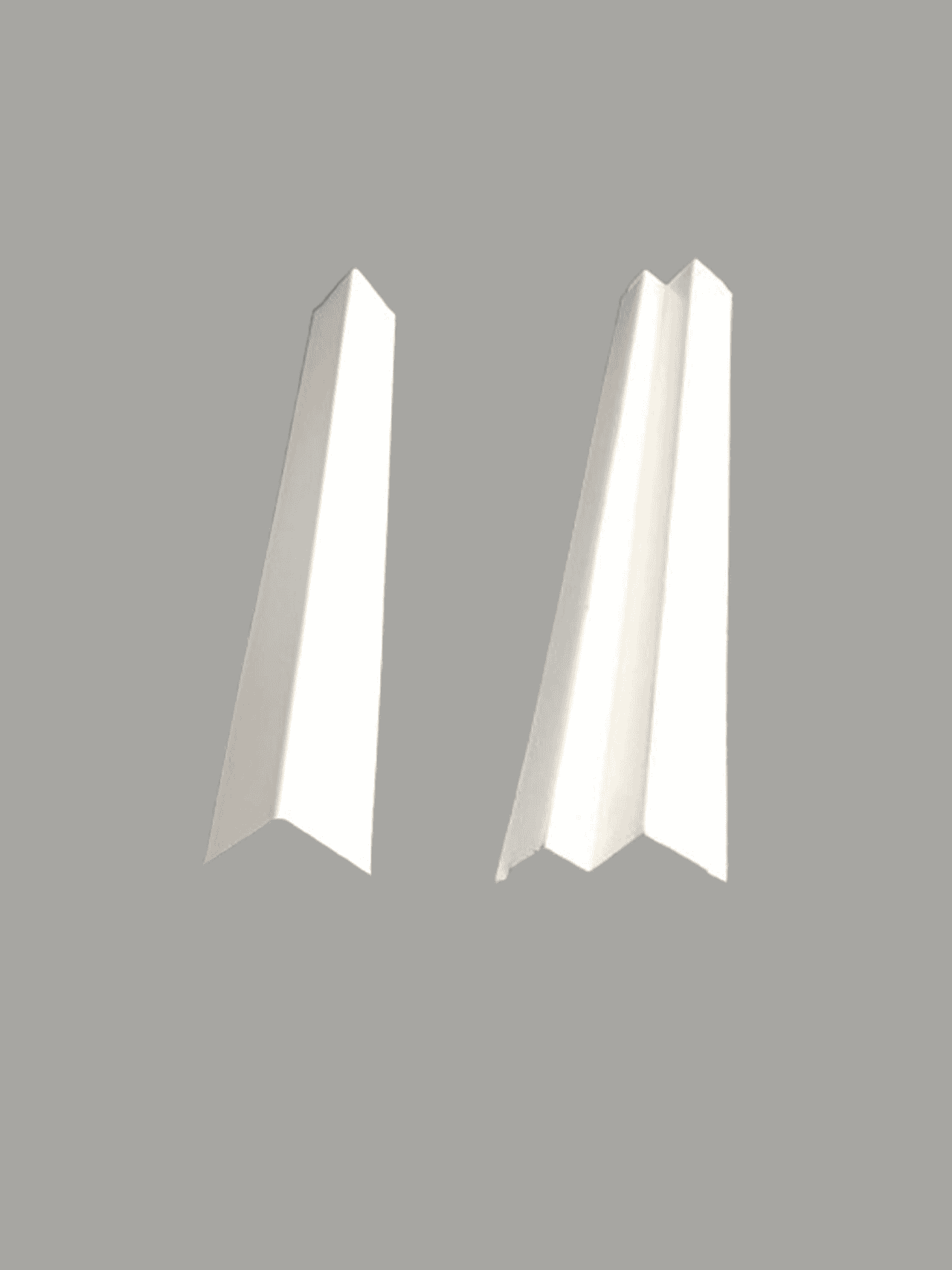

The T-grid system enables modular installation of ceiling tiles, enhancing system stability and speeding up the installation process. A complete T-grid system consists of Main Tee, Cross Tee, Small Tee, and Wall Angle components. We also offer various design options, including plain, groove, and exposed types.
