ACO Mineral SQ

ACO Mineral SQ is an exposed ceiling system with square lay-in edge, it is the most widely used acoustic ceiling system among all type of mineral wool ceiling tiles. The system is easy to install, has simple effects and is the most economical.

Sound absorption NRC≥50
Connect T15/24 grid
Square lay-in edge
Easy to assemble and maintain

mineral wool sq acoustic ceiling tiles system

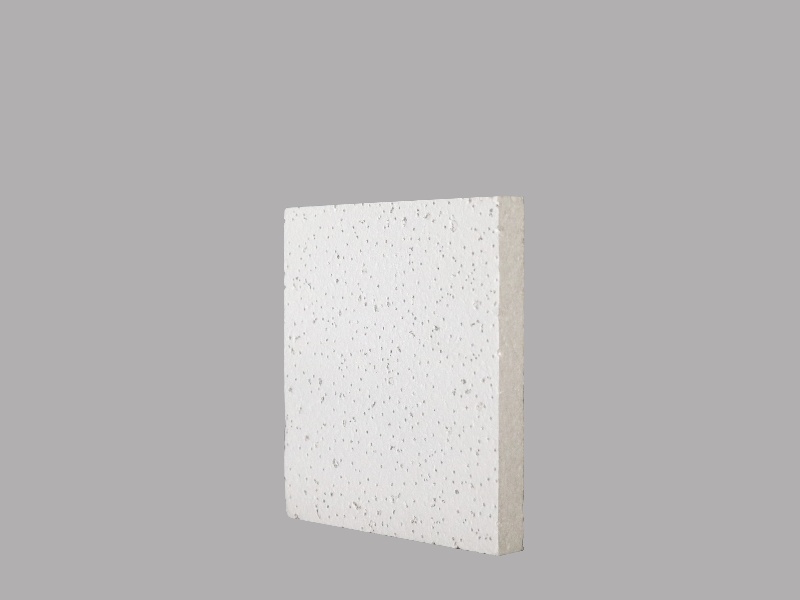

mineral wool sq acoustic ceiling tiles 1

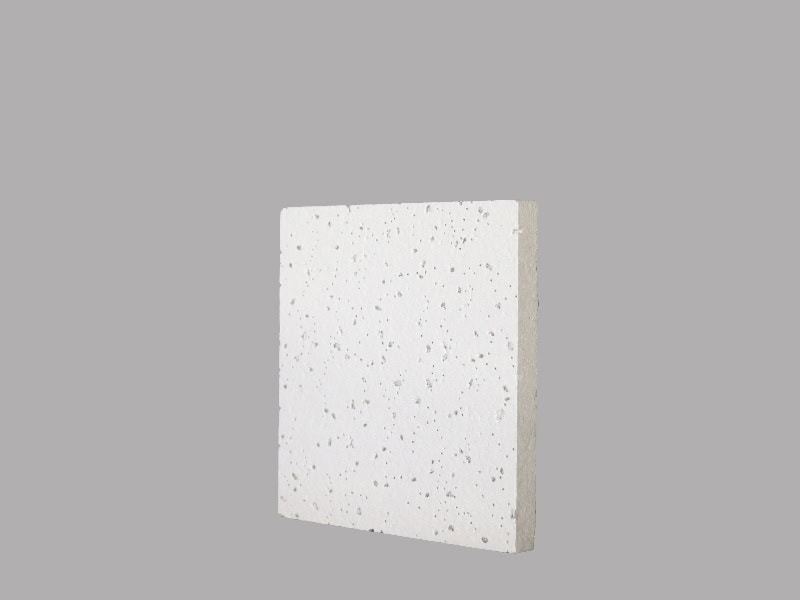

mineral wool sq acoustic ceiling tiles 2

Main materials

Wet processing mineral wool fibers

Decorative surface

Different texture and design options

Sound absorption

NRC≥0.50 according to EN ISO 354:2003 and EN ISO 11654:1997

Dampproof performance

Class C according to EN 13964:2014, stable performance when temperature is 40℃ and the relative humidity is below 90%

Fireproof performance

Class A, A2-s1 according to EN 13501-1, non-combustible materials

Density

220-380 kgs/m³, can accept customization upon request

Environmentally friendly

Both the product and packaging are recyclable

Technical Properties

Edge	Dimensions(mm)	Shape	Sound Absorption(NRC)	CAC Min.	Fireproof	Reflectivity
	600×600×12		≥0.50	30	Class A	0.8
	600×600×14		≥0.50	33	Class A	0.8
	2’×2’×5/9″		≥0.50	33	Class A	0.8
	600×1200×14		≥0.50	33	Class A	0.8
	2’×4’×5/9″		≥0.50	33	Class A	0.8
	600×600×16		≥0.60	33	Class A	0.84
	2’×2’×5/8″		≥0.60	33	Class A	0.84
	600×1200×16		≥0.60	35	Class A	0.84
	2’×4’×5/8″		≥0.60	35	Class A	0.84
	600×600×19		≥0.70	33	Class A	0.88
	2’×2’×3/4″		≥0.70	33	Class A	0.88
	600×1200×19		≥0.70	35	Class A	0.88
	2’×2’×3/4″		≥0.70	35	Class A	0.88

Decorative surface

Different from fiberglass and rock wool ceilings, the surface of mineral wool ceilings is integrally formed with the board together. The surface pattern is a non-directional design to ensure consistency and save installation time. Different texture designs can achieve different visual perceptions.

Figure

Film Laminated

Glue On

Hole

Sandy

T-Grid

The T-grid system enables modular installation of ceiling tiles, enhancing system stability and speeding up the installation process. A complete T-grid system consists of Main Tee, Cross Tee, Small Tee, and Wall Angle components. We also offer various design options, including plain, groove, and exposed types.
