ACO Rock SCD

ACO Rock SCD is a semi-concealed ceiling system, it allows T-grid access to the ceiling cavity while realizing a concealed ceiling solution, which is easy to install and remove. Compared with CDX type, there is visible gaps between two SCD type tiles.

Sound absorption NRC≥90
Connect T15/24 grid

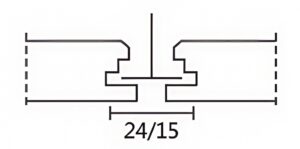

Semi-concealed edge
Visible gaps design

fiberglass rock wool cdx acoustic ceiling tiles system

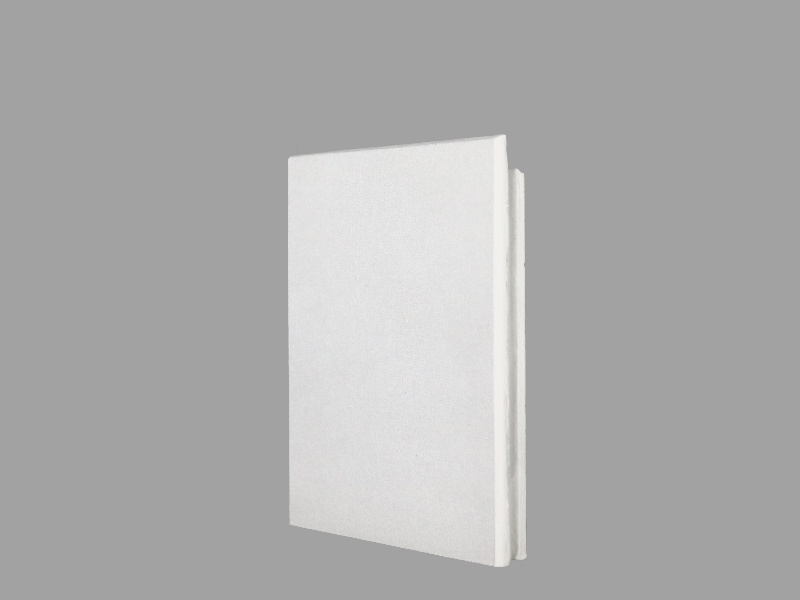

fiberglass rock wool scd acoustic ceiling tiles

Main materials

Dry synthetic high-strength rock wool

Surface materials

Decorative fiberglass veil with different designs and colors

Sound absorption

NRC≥0.90 according to EN ISO 354:2003 and EN ISO 11654:1997

Dampproof performance

Class C according to EN 13964:2014, stable performance when temperature is 40℃ and the relative humidity is below 95%

Fireproof performance

Class A, A2-s1 according to EN 13501-1, non-combustible materials

Density

180-200 kgs/m³, can accept customization upon request

Environmentally friendly

Both the product and packaging are recyclable

Technical Properties

Edge	Dimensions(mm)	Shape	Sound Absorption(NRC)	Fireproof	Dampproof	Reflectivity
	600×600×22		≥0.90	Class A	Class C	0.85
	600×1200×22		≥0.90	Class A	Class C	0.85
	600×1800×25		≥0.90	Class A	Class C	0.85
	600×2400×25/30		≥0.90	Class A	Class C	0.85
	300×600×22		≥0.90	Class A	Class C	0.85
	300×1200×22		≥0.90	Class A	Class C	0.85

Surface Veil

The surface of the acoustic ceiling tile is coated with a layer of fiberglass veil. This non-woven fabric is created from glass fiber filaments woven into a mesh structure and bound with resin. It provides excellent thermal insulation, high temperature resistance, superior sound absorption, and strong resistance to both acid and alkaline corrosion. Fiberglass surface veil comes primarily in white, we can also customize colors.

220

500

600

700

800

RAl Color

T-Grid

The T-grid system enables modular installation of ceiling tiles, enhancing system stability and speeding up the installation process. A complete T-grid system consists of Main Tee, Cross Tee, Small Tee, and Wall Angle components. We also offer various design options, including plain, groove, and exposed types.
