ACO Fiberglass BLACK

Black Fiberglass Ceiling Tiles are specifically designed to reduce noise, control reverberation, and prevent glare, while also balancing acoustic performance and a sophisticated dark color scheme. They are widely used in cinemas, conference rooms, recording studios, and other settings.

Sound absorption NRC≥0.85
Connect T15/24 grid
Cinema-specific
Easy to assemble and maintain

fiberglass rock wool black acoustic ceiling tiles system

fiberglass rock wool black acoustic ceiling tiles

Main materials
Dry synthetic high-strength glass wool

Surface materials
Black fiberglass veil with different designs

Sound absorption
NRC≥0.85 according to EN ISO 354:2003 and EN ISO 11654:1997

Dampproof performance
Class C according to EN 13964:2014, stable performance when temperature is 40℃ and the relative humidity is below 95%

Fireproof performance
Class A, A2-s1 according to EN 13501-1, non-combustible materials

Density
100-140 kgs/m³, can accept customization upon request

Environmentally friendly
Both the product and packaging are recyclable

Technical Properties

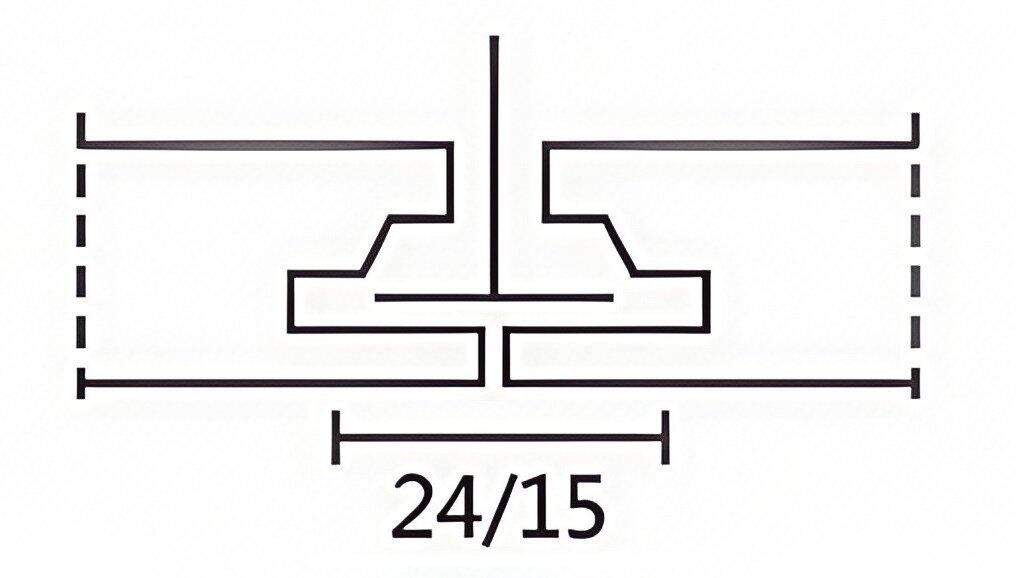

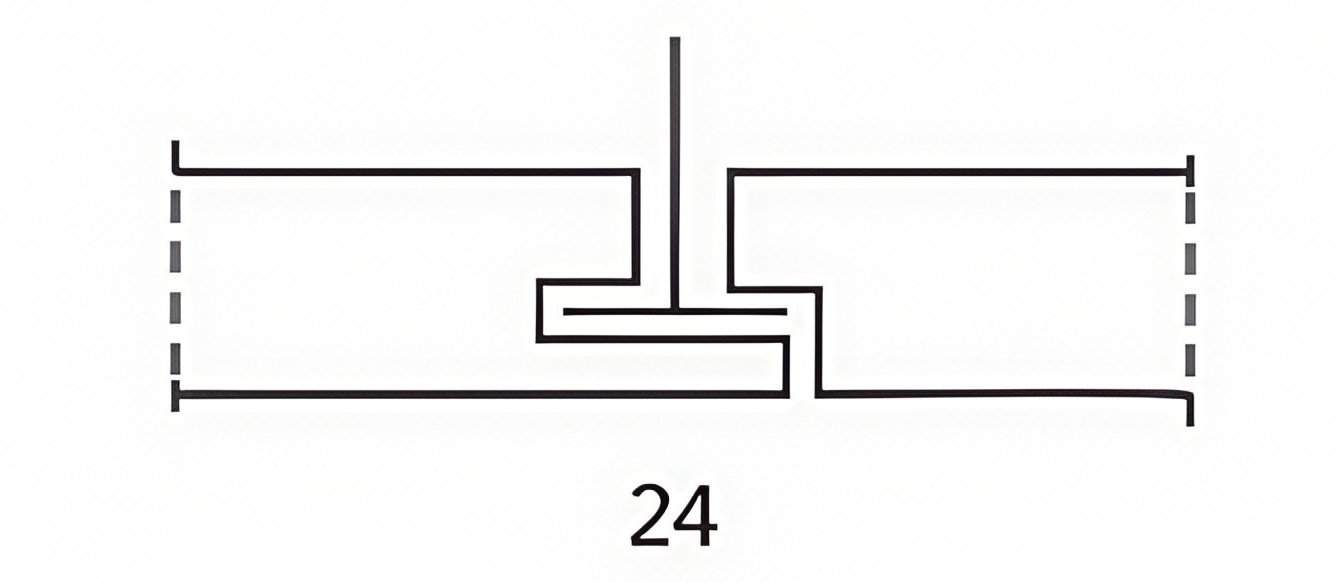

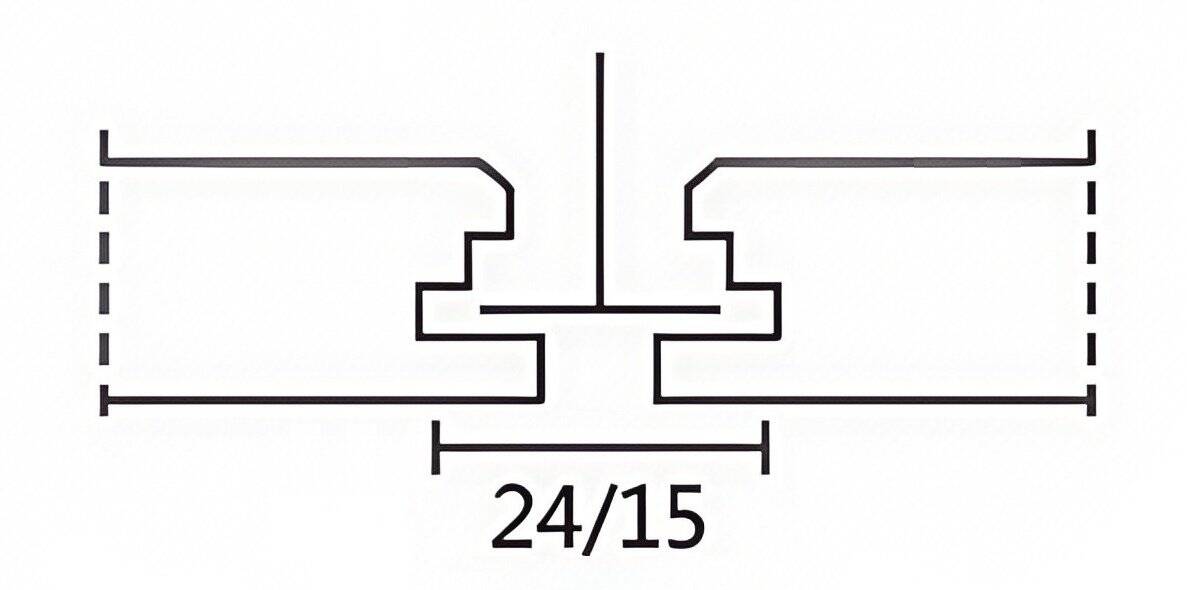

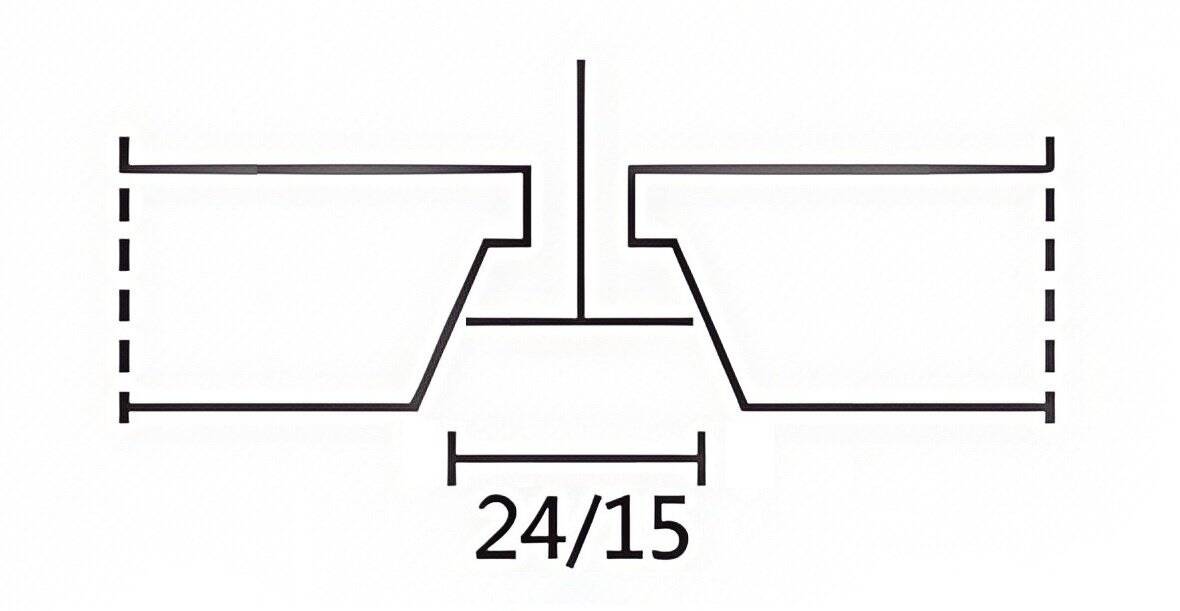

Edge	Dimensions(mm)	Shape	Sound Absorption(NRC)	Fireproof	Dampproof	Reflectivity
	600×600×15/20		≥0.85	Class A	Class C	0.85
	600×1200×15/20		≥0.85	Class A	Class C	0.85
	600×1800×20/25		≥0.85	Class A	Class C	0.85
	600×2400×25/30		≥0.85	Class A	Class C	0.85
	300×600×15/20		≥0.85	Class A	Class C	0.85
	300×1200×15/20		≥0.85	Class A	Class C	0.85
	1200×2400×25/30		≥0.85	Class A	Class C	0.85

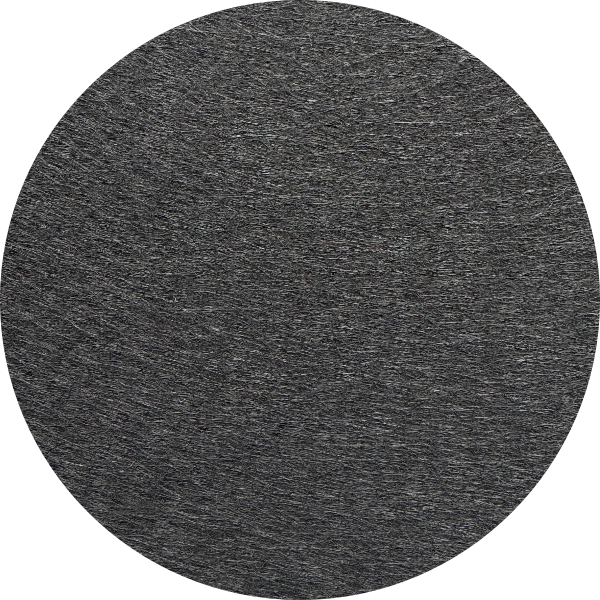

Surface Veil

The surface of the acoustic ceiling tile is coated with a layer of fiberglass veil. This non-woven fabric is created from glass fiber filaments woven into a mesh structure and bound with resin. It provides excellent thermal insulation, high temperature resistance, superior sound absorption, and strong resistance to both acid and alkaline corrosion.

900

T-Grid

The T-grid system enables modular installation of ceiling tiles, enhancing system stability and speeding up the installation process. A complete T-grid system consists of Main Tee, Cross Tee, Small Tee, and Wall Angle components. We also offer various design options, including plain, groove, and exposed types.
