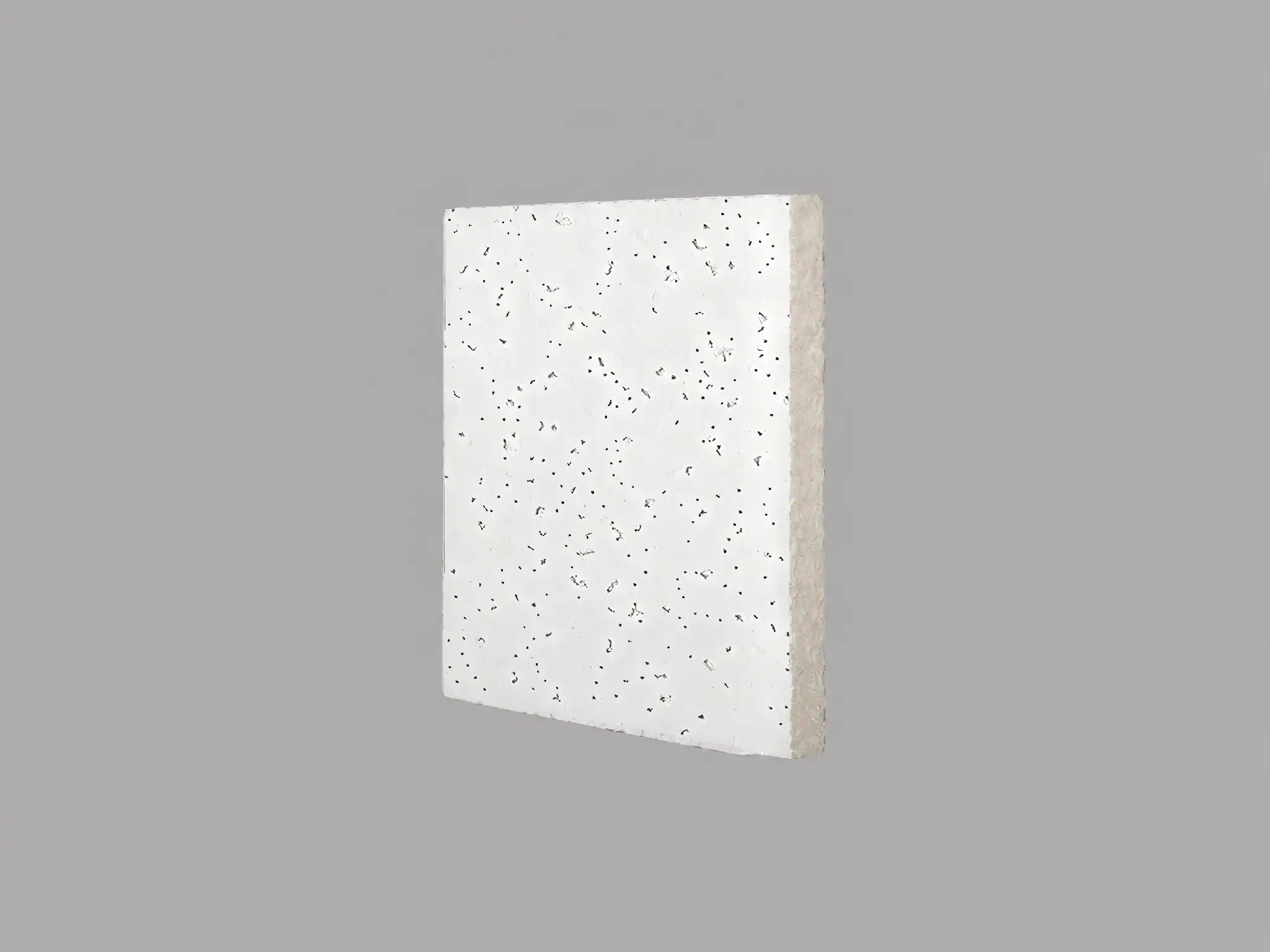

STARUSG Impressions

Impressions features a high-quality coating that creates a smooth, refined surface, while its non-directional perforated and figured pattern simplifies installation. Ideal for a wide range of applications, including closed and open offices, retail stores and shopping malls, hospitals, schools, restaurants, and light commercial spaces.The patented Climaplus antibacterial formula provides a 30-year anti-mildew and antibacterial quality warranty and a wide range of antibacterial functions.

NRC (Noise Reduction Coefficient):≥0.60
CAC (Ceiling Attenuation Class):33- 35
LR (Light Reflectance): Up to 0.85; improves lighting and reduces energy consumption
HRC (Recycled Content): Up to 50%; contributes to earning LEED points

Main materials

Water-felted mineral fiber

Decorative surface

Perforated and Figured surfaces with a water-based latex coating

Sound absorption

NRC≥0.60 according to ASTM C423-09a

Damp-proof performance

RH99 Limiting Conditions – Maximum 49°C (120°F) .

Fireproof performance

ASTM E84 surface burning

characteristics

Class A

Flame spread: 25

Smoke developed: 50

Weight

Imperial weight: Metric weight:

16 mm: 0.74-0.84 lb/sf 16 mm: 3.60-4.10 kg/sf

19 mm: 0.88-0.99 lb/sf 19 mm: 4.27-4.86 kg/sf

Thermal insulation performance

16mm: R-1.7(Imperial)R-0.3(Metric)

19mm: R-1.9(Imperial)R-0.33(Metric)

Anti-mildew and Antibacterial

The patented ClimaPlus antibacterial formula provides a 30-year anti-mildew and antibacterial quality warranty and a wide range of antibacterial functions.

Maintenance

The products can be easily cleaned by a vacuum cleaner,or wiped slightly using wet cloth or sponge.

Technical Properties

Edge	Dimensions(mm)	Shape	NRC	CAC Min.	Fireproof	LR	Recycled content
SQ	600×600×16 2’×2’×5/8″		0.65	33	Class A	0.85	50%
	600×1200×16 2’×4’×5/8″		0.65	33	Class A	0.85	50%
	600×600×19 2’×2’×5/8″		0.7	35	Class A	0.85	50%
	600×1200×19 2’×4’×5/8″		0.7	35	Class A	0.85	50%
SLT	600×600×16 2’×2’×5/8″		0.65	33	Class A	0.85	50%
	600×1200×16 2’×4’×5/8″		0.65	33	Class A	0.85	50%
	600×600×19 2’×2’×5/8″		0.7	35	Class A	0.85	50%
	600×1200×19 2’×4’×5/8″		0.7	35	Class A	0.85	50%
FLB	600×600×16 2’×2’×5/8″		0.65	33	Class A	0.85	50%
	600×1200×16 2’×4’×5/8″		0.65	33	Class A	0.85	50%
	600×600×19 2’×2’×5/8″		0.7	35	Class A	0.85	50%
	600×1200×19 2’×4’×5/8″		0.7	35	Class A	0.85	50%

Decorative surface

Different from fiberglass and rock wool ceilings, the surface of mineral wool ceilings is integrally formed with the board together. The surface pattern is a non-directional design to ensure consistency and save installation time. Different texture designs can achieve different visual perceptions.

Figure

Film Laminated

Glue On

Hole

Sandy

T-Grid

The T-grid system enables modular installation of ceiling tiles, enhancing system stability and speeding up the installation process. A complete T-grid system consists of Main Tee, Cross Tee, Small Tee, and Wall Angle components. We also offer various design options, including plain, groove, and exposed types.
