STARUSG Mars

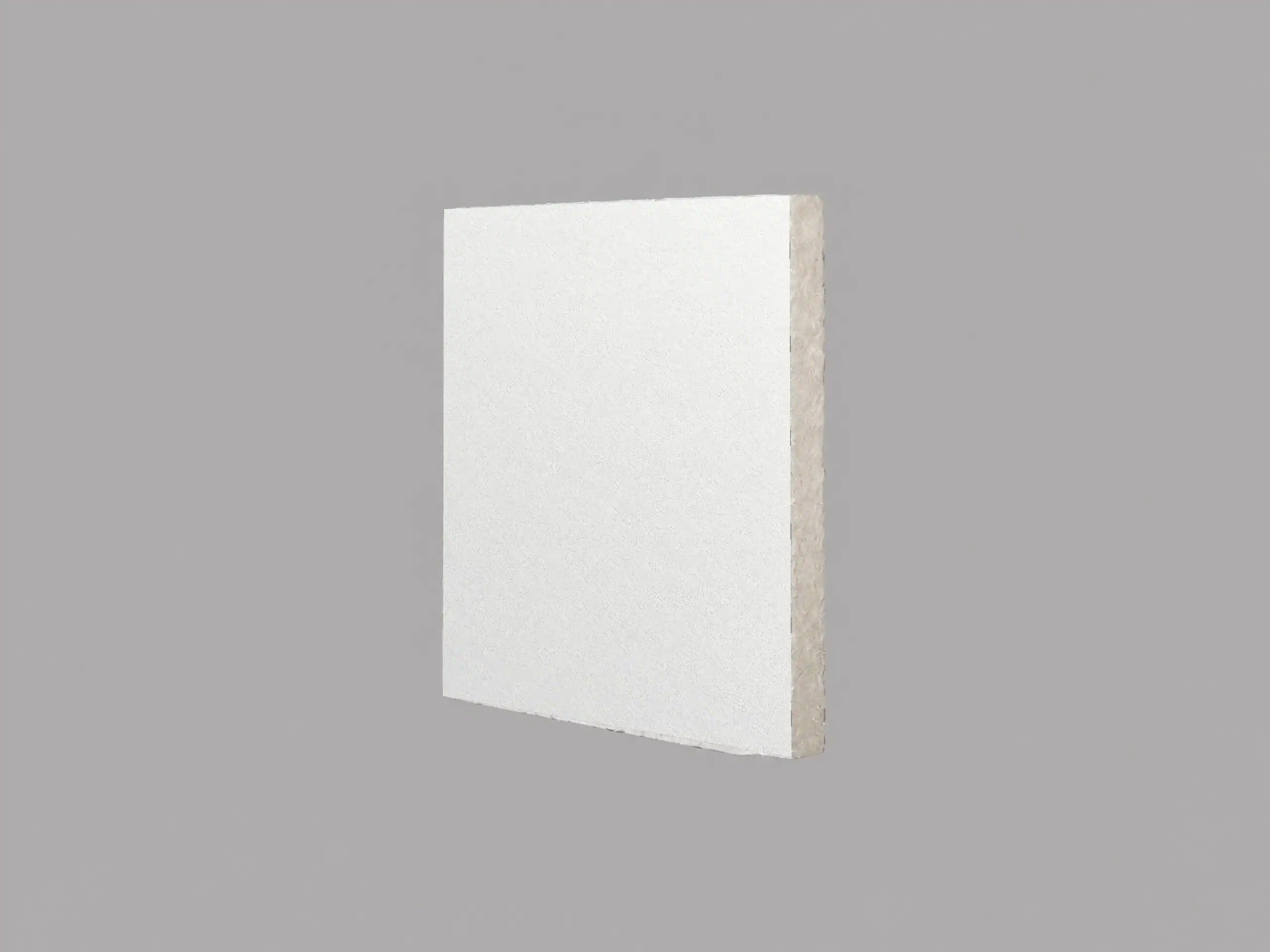

High-Strength, Large-Format Acoustic Products-Mars is a laminated acoustic Mineral wool featuring a fiberglass mat surface and an imported acoustically transparent film for enhanced strength and high sound absorption. Supporting large-format sizes up to 600 mm wide × 2400 mm long, it delivers excellent deflection performance to resist sagging. With a smooth textured finish and low dust shedding, Mars is widely used in hospitals and other environments with stringent cleanliness requirements.

NRC (Noise Reduction Coefficient):≥0.65
CAC (Ceiling Attenuation Class):35- 37
LR (Light Reflectance): Up to 0.88; improves lighting and reduces energy consumption
HRC (Recycled Content): Up to 70%; contributes to earning LEED points

Main materials

Water-felted mineral ﬁber/Wet forming;mineral fiber

Decorative surface

Laminated -Reinforced surface with a layer of imported acoustic film

Sound absorption

NRC≥0.7 according to ASTM C423-09a

Damp-proof performance

Limiting Conditions – Maximum 49°C (120°F)/99% RH .

Fireproof performance

ASTM E84 surface burning

characteristics

Class A

Flame spread: 25

Smoke developed: 50

Weight

Imperial weight:0.93-1.13 lb/sf

Metric weight: 4.56-5.51kg/sf

Thermal insulation performance

R-1.9(Imperial)

R-0.34(Metric)

Anti-mildew and Antibacterial

The patented ClimaPlus antibacterial formula provides a 30-year anti-mildew and antibacterial quality warranty and a wide range of antibacterial functions.

Maintenance

The products can be easily cleaned by a vacuum cleaner,or wiped slightly using wet cloth or sponge.

Technical Properties

Edge	Dimensions(mm)	Shape	NRC	CAC Min.	Fireproof	LR	Recycled content
SQ	600×600×16 2’×2’×5/8″		0.65	35	Class A	0.88	70%
	600×1200×16 2’×4’×5/8″		0.65	35	Class A	0.88	70%
	600×600×19 2’×2’×5/8″		0.7	37	Class A	0.9	70%
	600×1200×19 2’×4’×5/8″		0.7	37	Class A	0.9	70%
FLB	600×600×16 2’×2’×5/8″		0.65	35	Class A	0.88	70%
	600×1200×16 2’×4’×5/8″		0.65	35	Class A	0.88	70%
	600×600×19 2’×2’×5/8″		0.7	37	Class A	0.9	70%
	600×1200×19 2’×4’×5/8″		0.7	37	Class A	0.9	70%

Decorative surface

Different from fiberglass and rock wool ceilings, the surface of mineral wool ceilings is integrally formed with the board together. The surface pattern is a non-directional design to ensure consistency and save installation time. Different texture designs can achieve different visual perceptions.

Figure

Film Laminated

Glue On

Hole

Sandy

T-Grid

The T-grid system enables modular installation of ceiling tiles, enhancing system stability and speeding up the installation process. A complete T-grid system consists of Main Tee, Cross Tee, Small Tee, and Wall Angle components. We also offer various design options, including plain, groove, and exposed types.
