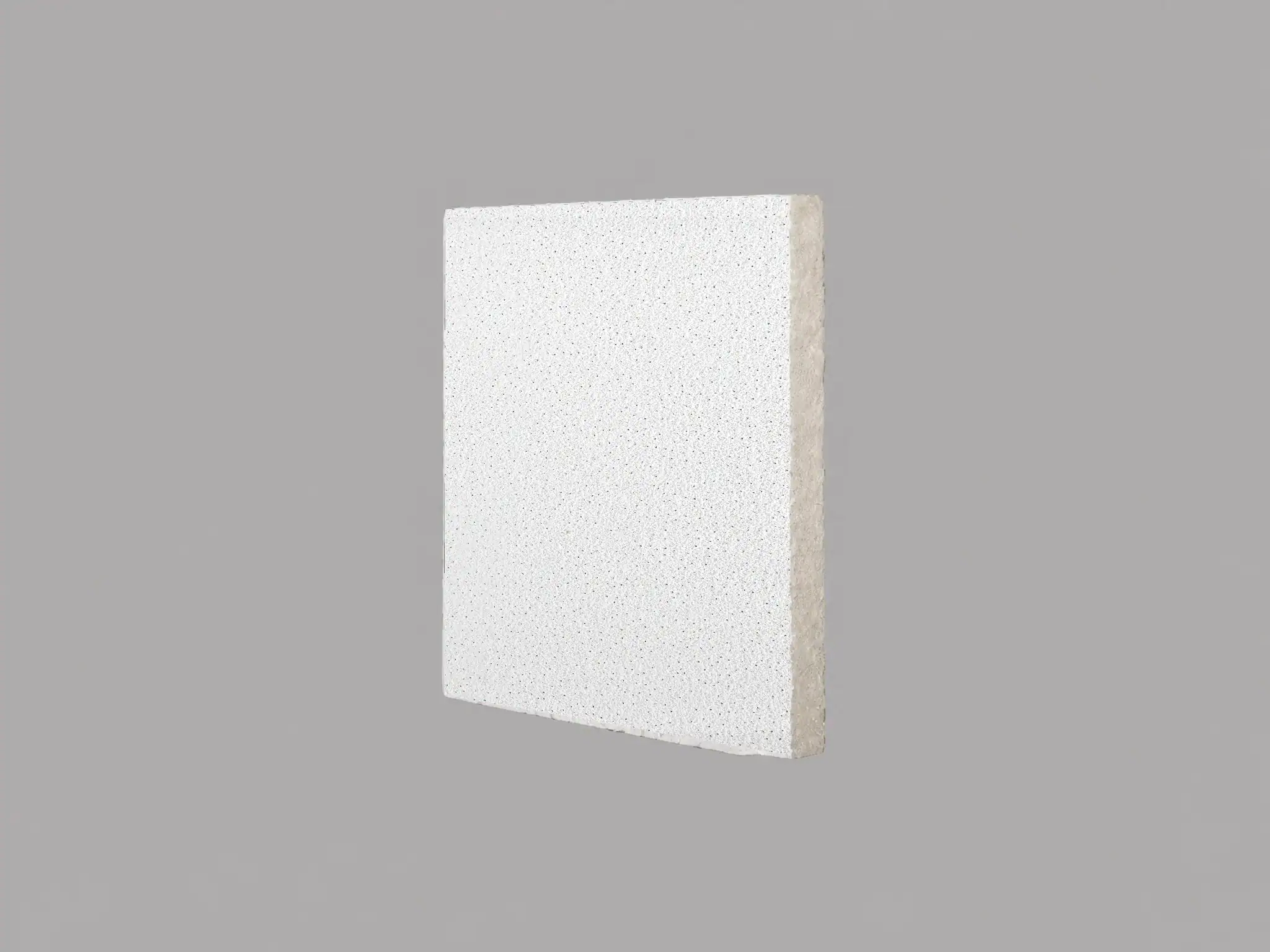

STARUSG Olympia

-OLYMPIA UNPERFORATED

-OLYMPIA PERFORATED

Grit blasted veneer and delicate texture— Micro-perforations provide a smooth, refined appearance while enhancing sound absorption.High reflectivity. reducing the need for lighting equipment and saving energy, providing a comfortable visual environment and relieving eye fatigue,they are an excellent choice for Schools, hotels, meeting/reception rooms, retail stores/malls, and offices and other commercial and public spaces.

The patented Climaplus antibacterial formula provides a 30-year anti-mildew and antibacterial quality warranty and a wide range of antibacterial functions.

The damp-proof RH99 ceiling tile series provides a 10-year limited quality warranty. If they are used in combination with Star-USG grids,a 15-yearsystem quality warranty can be provided

NRC (Noise Reduction Coefficient):≥0.60
CAC (Ceiling Attenuation Class):33- 35
LR (Light Reflectance): Up to 0.88; improves lighting and reduces energy consumption
HRC (Recycled Content): Up to 65%; contributes to earning LEED points

Main materials

Water-felted mineral fiber

Decorative surface

Micro-perforated surfaces with NanoPhotocatalytic Coating

Sound absorption

NRC≥0.60 according to ASTM C423-09a

Damp-proof performance

RH99 Limiting Conditions – Maximum 49°C (120°F) .

Fireproof performance

ASTM E84 surface burning

characteristics

Class A

Flame spread: 25

Smoke developed: 50

Weight

Imperial weight: Metric weight:

16 mm: 0.78-0.95 lb/sf 16 mm: 3.84-4.65 kg/sf

19 mm: 0.93-1.13 lb/sf 19 mm: 4.56-5.51 kg/sf

Thermal insulation performance

16mm: R-1.7(Imperial)R-0.3(Metric)

19mm: R-1.9(Imperial)R-0.33(Metric)

Anti-mildew and Antibacterial

The patented ClimaPlus antibacterial formula provides a 30-year anti-mildew and antibacterial quality warranty and a wide range of antibacterial functions.

Maintenance

The products can be easily cleaned by a vacuum cleaner,or wiped slightly using wet cloth or sponge.

Technical Properties

Edge	Dimensions(mm)	Shape	NRC	CAC Min.	Fireproof	LR	Recycled content
OLYMPIA UNPERFORATED SQ	600×600×16 2’×2’×5/8″		–	33	Class A	0.88	65%
OLYMPIA UNPERFORATED SQ	600×1200×16 2’×4’×5/8″		–	33	Class A	0.88	65%
OLYMPIA PERFORATED SQ	600×600×16 2’×2’×5/8″		0.65	33	Class A	0.88	65%
	600×1200×16 2’×4’×5/8″		0.65	33	Class A	0.88	65%
	600×600×19 2’×2’×5/8″		0.7	35	Class A	0.88	65%
	600×1200×19 2’×4’×5/8″		0.7	35	Class A	0.88	65%
OLYMPIA UNPERFORATED SLT	600×600×16 2’×2’×5/8″		0.65	33	Class A	0.88	65%
	600×1200×16 2’×4’×5/8″		0.65	33	Class A	0.88	65%
	600×600×19 2’×2’×5/8″		0.7	35	Class A	0.88	65%
	600×1200×19 2’×4’×5/8″		0.7	35	Class A	0.88	65%
OLYMPIA PERFORATED FLB	600×600×16 2’×2’×5/8″		0.65	33	Class A	0.88	65%
	600×1200×16 2’×4’×5/8″		0.65	33	Class A	0.88	65%
	600×600×19 2’×2’×5/8″		0.7	35	Class A	0.88	65%
	600×1200×19 2’×4’×5/8″		0.7	35	Class A	0.88	65%

Decorative surface

Different from fiberglass and rock wool ceilings, the surface of mineral wool ceilings is integrally formed with the board together. The surface pattern is a non-directional design to ensure consistency and save installation time. Different texture designs can achieve different visual perceptions.

Figure

Film Laminated

Glue On

Hole

Sandy

T-Grid

The T-grid system enables modular installation of ceiling tiles, enhancing system stability and speeding up the installation process. A complete T-grid system consists of Main Tee, Cross Tee, Small Tee, and Wall Angle components. We also offer various design options, including plain, groove, and exposed types.
